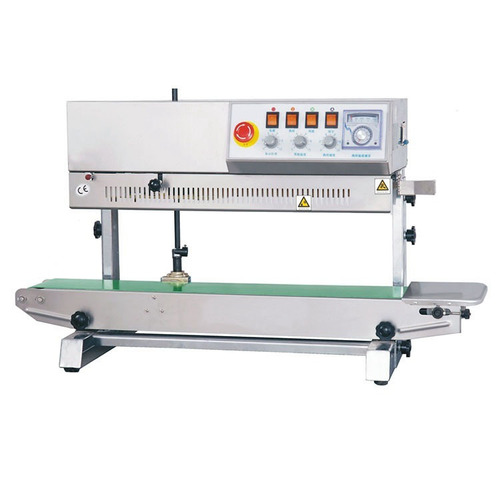

Vertical Band Sealer

Product Description

Introduction

It is latest in sealing technology; and ideal for heat sealing of a variety of thermoplastic pouches & bags continuously, speedily & efficiently. It is a heavy duty model of Continuous Band Sealer, available in vertical configuration with Nitrogen Flushing, which helps to keep foods fresh and prevents formation of bacteria and allergens. It is in great demand due to efficient packaging of both perishable & non-perishable products in terms of protection from potential damages and contamination before reaching at the hand of end customers. It is widely preferred in packaging foods such as Meat,Cheese, liquids & many more spillable items.

It adopts electronic constant temperature control system and step less speed adjusting transmission mechanism.  As an optional attachment, Solid ink wheel, which is provided, can print production date as well as sealing. The printing letters are clear, have available colours, dries immediately & easy to change.

Salient Features / Benefits

• Simple Design & Sturdy Construction
• MS Body
• Vertical Sealing
• Low Maintenance
• High Productivity
• Reliable Sealing Quality
• Very Low Power Consumption
• Suitable for Pack Size of up to 3 Kgs
• Suitable for All Type of  Heat Sealable Material in Every Thickness
• Increased Shelf Life of Packaged Product
• Preserving Foods as Fresh
• Adjustable Digital Timer to Control Gas Flushing & Sealing

Advantages

Speedy Packing

Due to automation, Continuous Band Sealer is able to increase production dramatically. On an average, 20 to 30 plastic bags / pouches can be sealed in a minute. Sealing speed will depend upon operators' efficiency

Labour Cost Savings

It can give output equivalent to 3-4 Manual Sealing Machines thus there is great savings in labour cost.

Low Maintenance

This machine is imported from Taiwan including best parts, components. It is manufactured in the highly developed manufacturing unit in using latest technology. Machines quality is strictly controlled in various levels of manufacturing based on range critical parameters. Hence, quality is assured for continuous, excellent & prolonged machine performance with minimum maintenance.

User Friendly

This machine is easy to operate for long duration due to its simple design &simple technology. As conveyor speed can be customized, machine speed & performance can be easily aligned with Labor's speed & performance.

Leak Prof & Accurate Sealing

Needless to say, sealed bags or pouches by Continuous Band Sealer produces accurate sealing without any leakage compared to any other sealing process.

Target Industries

• Food & Groceries
• Flour Mills
• Seeds
• Dairy Products
• Bakery Products
• Pharmaceuticals
• Chemical Industries
• Cosmetic Products
• Automobile Spare Parts
• Electronic Spares & Components
• Bearing Industries
• Pesticides
• Detergent
• Tobacco & many more.

Technical Specifications

Machine Weight	37 KGS
Brand	VIJAYPACK
Model Name/Number	VP 770 V-MS NF
Capacity	2 KGS
Automation Grade	Semi-Automatic
Max. Conveyor Load	4 KGS
Motor Power	500 W
Operational Mode	Vertical
Temperature Range	0  300 DEGREE C
I Deal In	New Only
Sealing Speed	0   12 MTR / MIN
Phase	SINGLE
Material	MS BODY
Sealing Width Mm	8,10 MM
Usage/Application	Heat sealing of a variety of thermoplastic pouches
Temperature Controller	Electronic consistant temperature control system

Efficient Sealing with Nitrogen Flushing

This Vertical Band Sealing Machine provides not only strong, airtight seals for your plastic bags and pouches but also incorporates nitrogen flushing to help prolong product freshness. Ideal for food and pharmaceutical packaging, it supports up to 3 kg packages with a reliable sealing speed of up to 12 meters per minute.


Versatile and Durable Construction

Manufactured with a sturdy mild steel (MS) body, this sealer ensures long-lasting performance. Its compact dimensions (840 x 380 x 550 mm) make it suitable for various settings, from small businesses to larger industrial environments.


Simple Operation and Maintenance

With a semi-automatic design, this vertical band sealer offers easy setup and minimal operator intervention. Routine maintenance is straightforward, making it a reliable choice for high-volume packaging operations.
