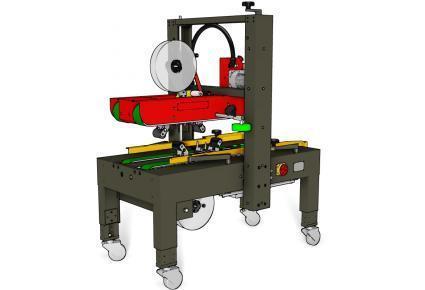

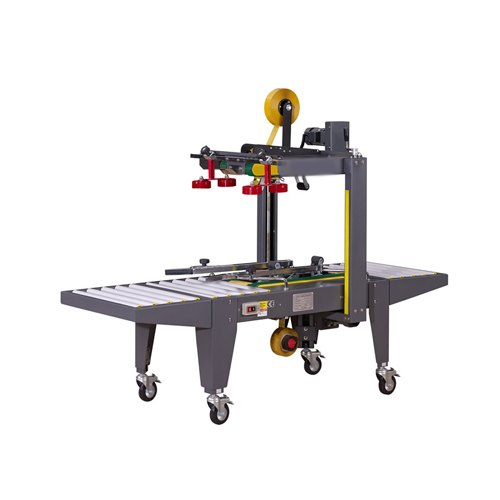

Carton Sealing Machine

Product Description

Introduction

It is a Heavy Duty Carton Sealing Machine and industry favorite to accomplish high volume packaging. This machine has found application in all kind of industries, where packing volume is high. The machine is ideal for batch packing of uniform cartons by applying BOPP Self Adhesive Tapes. It seals both top and bottom flaps simultaneously at tremendous speed as compared to manual methods. The tape is also applied properly without leaving any scope for opening up-transit,thus avoiding any kind of in-transit loss/ pilferage of the product.

Salient Features / Benefits

• Simple Design & Sturdy Construction
• High Productivity
• High Volume Packaging
• Simultaneous Sealing of Top & Bottom
• No Loss Due to Pilferage
• In Feed / Out Feed Roller Conveyor
• Break Type Castor Wheel
• Telescopic Legs

Advantages

Speedy Packing

This machine can do packing very speedily at a speed of 20 Mtrs / Minute. One Carton Sealing Machine can pack equivalent to pack almost Three to Four Manual Tape Dispensers by using Manual Labor. However, actual speed depends upon the box length & operator's feeding efficiency.

Labor Cost Savings

Incase of offline production only one labor is required just to feed the cartons.In case of online, it can be connected to Automatic Production Line; hence, no manpower is required.

Low Maintenance

Vijaypack Carton Sealing Machines are made using best quality raw materials &components with the help of latest and technologically advanced Plant & Machineries deploying highly qualified & skilled workers under Strict Quality Control; thus ensuring that the machines manufactured & supplied are of highest quality with minimum or no breakdown & very low maintenance.

User Friendly

This machine is easy to operate; and machine settings can be adjusted as per carton width& height very easily.

Pilfer Proof

Uniform Packing

Carton Sealing Machine can dispense BOPP Tape uniformly to seal cartons as compared to manual methods; resulting is better packaging with minimum wastage.

Savings in Tape Cost

By using Carton Sealing Machine side lengths are exact; thus avoiding wastage and ultimate savings in Tape Cost.

Mobility

Since the machine is fitted with castors, it can be easily shifted in the shop floor from one place to another place as per customers'requirement.

Price: Rs.1, 25,000/-

Industrial Application

Carton sealing machine is widely used in the industries such as Electrical Domestic Appliances, Foodstuffs, Biscuit, Edible Oil, Beverages, Transport & Logistics, Textiles, General Merchandise, Chemical, Pharmaceutical, Manufacturing, Food Processing, FMCG, Lubricants & many more.

Technical Specifications

Size/Dimension	L 1090 * W 890 * H 1280 MM
Usage/Application	SEALING CARTONS WITH BOPP & PVC TAPE
Brand	VIJAYPACK
Voltage	220 V / 50  60 HZ
Conveyor Speed	20 MTRS. / MIN
Model Name/Number	VP FJ 1A
Automation Grade	Semi-Automatic
Packaging Size	L 150 MM X W 120 MM  480 MM X H 120 MM 480 MM
Driven Type	TOP & BOTTOM
Tape Width	24 MM  72 MM
Power	600 W
Weight	250 KGS
I Deal In	New Only

Efficient Semi-Automatic Carton Sealing

This top and bottom flap folding carton sealing machine is crafted for both reliability and efficiency. Featuring an MS powder-coated finish and sturdy construction, it streamlines the taping process while maintaining consistency. The machines dimensions are 1090 * 890 * 1280 mm and it weighs 250 kg, making it suitable for medium to large-scale operations in various industries.


User-Friendly Operation & Versatile Application

Designed to meet industrial standards, this semi-automatic sealing machine is easily operated by workers, serving as an excellent choice for manufacturers, exporters, suppliers, and traders. It effectively applies tape to carton boxes, enhancing packaging speed and uniformity, reducing manual workload, and ensuring cartons are securely prepared for shipment or storage.
