Automatic Taping Machine

About Automatic Taping Machine

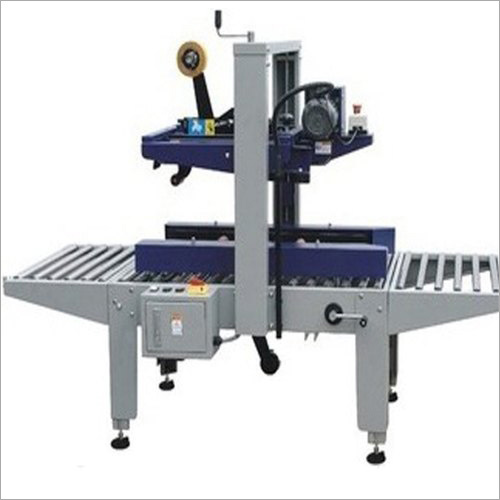

Carton Sealing Machine (VP FJ 2)

Introduction

It is an Automatic Carton Sealing Machine & most suitable for Packing Cartons of Random Sizes without manual adjustments. This machine has found application in all kind of industries where packing volume is high. The machine is ideal for batch packing of uniform cartons by applying BOPP Self Adhesive Tapes. The tape is also applied properly without leaving any scope for opening up-transit,thus avoiding any kind of in-transit loss/ pilferage of the product.

Special Feature / Benefit

• Automatic Adjustment As per Carton Width& Height

Salient Features / Benefits

• Top & Side Belt Drive
• Break type Castor Wheel
• Telescopic Legs
• Very Low Power Consumption

Advantages

Smoothest& Fastest Operation

Automatic mobilization of cartons, automatic adjustable sealing widths and height,automatic tape pasting ensures smooth operation consistently with high speed. This machine can work equivalent to four manual systems. Eleven boxes can be sealed per minute; if carton / box length is 300 mm. Sealing rate is varied depending on box length, conveyor speed & feeding efficiency.

Labor Cost Savings

As it is connected to Semi Automatic Production Line, one layman is sufficient to control the whole operating system besides managing production.

The offered machine includes high quality's parts & components, thereby minimum maintenance is required.

This machine is easy to operate; as this machine itself takes the initiative to regulate height, width, convenient, rapid, & simple without manual conditioning.

This machine is equipped with blade guard; thereby preventing accidental stabbing operation & ensuring secure production.

Of course BOPP Tape Sealing by Machine reflects better finishing in compared to manual method

It can be easily shifted in the shop floor from one place to another place.

Price: Rs.2, 45,000/-

Industrial Application

Carton Sealing Machine is widely used in the industries such as Electrical Domestic Appliances, Food stuffs, Biscuit, Edible Oil, Beverages, Transport & Logistics, Textiles, General Merchandise, Chemical, Pharmaceutical, Manufacturing, Food Processing, FMCG, Lubricants & many more.

Technical Specifications

Size/Dimension	L 1150 x w 1000 x h 1230 (in mm)
I Deal In	New only
Weight	240 kgs
Power	50 hz
Speed	19 mtrs / min
Tape Width	48  72 mm
Packaging Size	L 150  unlimited x w 120  480 x h 120  450 (in mm)
Driven Type	Top & side belt drive
Automation Grade	Semi-automatic
Model Name/Number	VP FJ 2
Conveyor Speed	19 mtrs / min
Phase	Single
Voltage	220 v
Brand	Vijaypack
Material	Ms powder coated
Usage/Application	Sealing cartons with BOPP & PVC tape

Powerful and Efficient Carton Sealing Solution

Engineered for enhanced productivity, the Automatic Taping Machine offers seamless carton taping with high accuracy. Its automatic and semi-automatic functions allow easy and consistent operation, making it perfect for packaging units needing large-volume carton sealing. The machines durable build and user-friendly controls ensure reliability and minimal maintenance.


Rugged MS Powder-Coated Construction

Built with a strong mild steel powder-coated body, this sealing machine resists corrosion and wear in demanding industrial environments. Its robust structure ensures longevity, reducing the need for frequent replacements and facilitating continuous operations. The grey white and navy blue color scheme also adds an aesthetic appeal for modern workplaces.
