Automatic Strapping Machine

Product Description

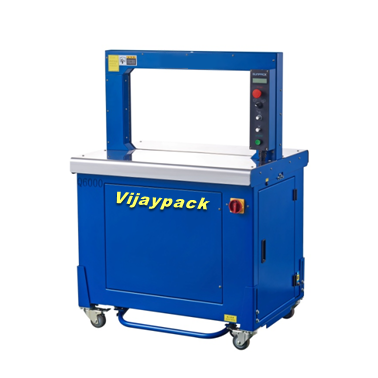

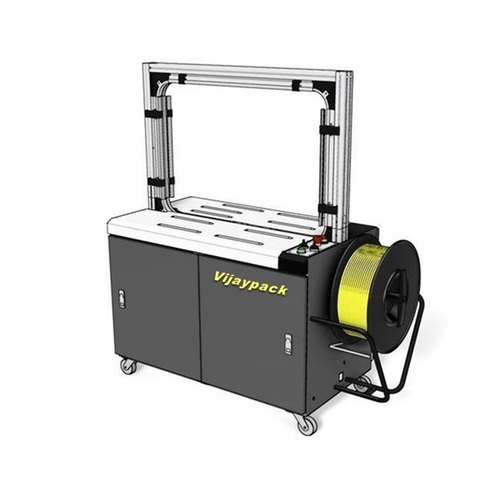

Fully Automatic Box Strapping Machine (VP 102 A)

Introduction

This Fully Automatic Unmanned Box Strapping Machine can be used both online &offline to strap boxes/ cartons. Bundles etc. with PP/ plastic strapping very speedily, efficiently & most economically. This machine is fitted with aluminum alloy arch and high working table including power rollers. It has PLCcontrol system, thereby detecting strapping cartons automatically. Once carton goods are placed onto the main production conveyor, those will come automatically on strapping machine and get strapped, thus manpower can be eliminated. It has found application in all kind of industries where packing volume is high.

Salient Features

• Easy Operation & Low Maintenance
• Robust Structure
• Automatic Detection / Packaging
• Easy to Replace Strap
• 100%Made in Taiwan
• Aluminum Arch with Brush on Both The Side for Accurate Strapping on Package
• It Can be Used Online Or Stand Alone Both

Advantages

• Speedy Packing: It can do 25 - 30 straps/ min, thus ensuring high production.

• Las:This machine can easily pack equivalent to Four Semi Automatic Strapping Systems ;thus good amount of savings can be made in labour cost.

• Material Cost Saving:As it seals the joints by method of heat sealing there is no requirement of metal clips. Further there is savings in strap cost as looping is not required.

• Low Maintenance:It is a technologically superior machine including high qualit parts, thus, noor minimum maintenance is required and the breakdown rate of this machine isalmost nil.

• Strapping Tension: It can create tension up to 90 Kgs, thus ensuring sufficient tightness of packages and minimal chances of loosening intransit as compared to manual methods.

• Mobility :It can be easily shifted in the shop floor from one place to another place.

Price: Rs.3,17,000/-

Areas of Application

It is widely applied in the industries such as Newspaper, Book Publishers, Note Book, CFC Boxes, Fan, FMCG Product, Marine Industry, Foot Wear, Leather Industry, Offset Printing, Pharmaceutical, Garments, Food Processing & many more...

Technical Specifications

Brand	Vijaypack
Arch Size	850 x 600 (W x H) (in MM)
Strapping Tension	0 90 Kgs (Adjustable)
Automation Grade	Automatic
Voltage	380 V
Strapping Speed	25 30 Straps/Min.
Model Number/Name	VP 102 A
Dimension	1580 x 620 x 1420 (L x W x H) (in MM)

Efficient Strapping for Enhanced Productivity

The automatic nature of this strapping machine, combined with its PLC control system, guarantees rapid and consistent packaging, reducing manual intervention and error. This efficiency not only accelerates packaging lines but ensures secure strapping for goods, contributing to safer transportation and storage.


Robust Design to Suit Varied Needs

Crafted for endurance, the machines robust frame and standardized dimensions are engineered to handle continuous operations. Its adaptability to various box strapping materials makes it a versatile choice for diverse industries, from warehousing to export hubs.


Comprehensive Support from Industry Experts

As established distributors, exporters, manufacturers, suppliers, and traders in India, we provide not only top-tier machines but also guidance and after-sales service. Our expert team supports installation, operation, and maintenance, ensuring uninterrupted workflow for your business.
